Advantages and Characteristics:
Specifications
Overall Size: 1900mmX800X18 (WxHxD, mm)
Visual size: 1840X740(WxH, mm)
Casing: 18mm optimal aluminum frame with black color
Colour: black color
light source: high brightness 2835 edge lit led light
poster printing: use the world's leading UV machine printing
display way : wall mounted
Configuration: single side or double side
Backlight: LED strips
Power Supply: 100-240VAC, suitable global country,
power adaptor: DC12V with high configuration transformer , have CE, RoHS, and UL certificate
poster size : 1860mmX760mm
| Model | Size | Specification(mm) | Thickness | Light source | Power | Power supplier | Note |
| Outer Size | Graphic size | View Size | (mm) | (W) |
| 1830 | A0 | 1229*881 | 1189*841 | 1169*821 | 18 | 2835 LED | 3.6W | DC12V | wall system |
| A1 | 881*634 | 841*594 | 821*574 | 18 | 2835 LED | 7.2W | DC12V | wall system |
| A2 | 634*460 | 594*420 | 574*400 | 18 | 2835 LED | 14.4W | DC12V | wall system |
| A3 | 460*337 | 420*297 | 400*277 | 18 | 2835 LED | 20W | DC12V | wall system |
| A4 | 337*290 | 297*210 | 277*190 | 18 | 2835 LED | 28.5W | DC12V | wall system |
Options/customisibility
1. the size can be customized;
2. the color can be customized;
3. the cables from the led light box length can be customized;
4. frame thickness can be customized, we have different model;
5. power adaptor is DC 12V, can use for AC100-240V;
6.standard local country plug ;
7.open with a suction cup, easy change the poster;
8. can add switch with remote control turn on or off;
9. can add the dimmer to control the light degree .
Service:
1. Customers' designs are available.
2. Installing instructions,customers' sizes and colors are available.
3. Posters with customers' digital files can be printed and installed into light boxes.
4. Each product has 1 year for warranty.
5. Special request about packing is available.

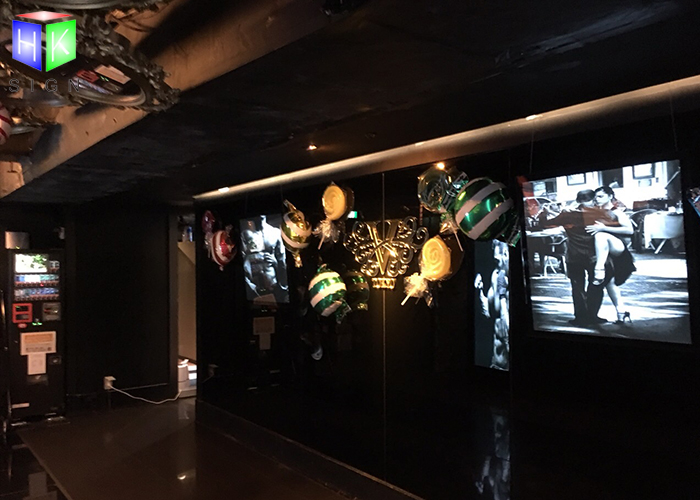

successful installation case show
