Advantages and Characteristics:
Adopt high-quality Delicate crystal acrylic frame. The frame is strengthening designed to resist shock and beautiful appearance;
* Easy Artwork change and installation;
* Using digital electronic ballast and high quality illuminant;
* Low power consumption: 2W (can save the 80% energy compare to the traditional light box);
* Illumination: High bright white LEDs;
* Light output: 2000 to 3000 lux (maximum 8,000 lux);
* Long lifespan with at least 80,000 hours;
* Laser engraved LGP with even brightness and less aging for the Light box;
* Colour: Silver Anodised as standard, or your choice of RAL colours;
* Standard poster sizes A0, A1, A2, A3, A4, B1, B2 and custom sizes up to poster size of 1200mm x 2400mm;
* Application interior decoration, chain operation store, company signboard, commercial centre, supermarket, airport, station, subway, bank, bus station, large exhibition project etc.
Parameters:
| Category | Crystal Acrylic LED Light Panel |
| Item No. | CLP01-A1 | CLP01-A2 | CLP01-A3 | CLP01-A4 | CLP01-A5 |
| Display Proposal | Horizontal |
| Picture Size (mm) | 840*594 | 594*420 | 420*297 | 297*210 | 210*148 |
| Visual Size (mm) | 835*589 | 589*415 | 415*292 | 292*205 | 205*143 |
| Frame Size (mm) | 955*709 | 689*515 | 505*382 | 377*290 | 280*218 |
| Thickness (mm) | 12 | 12 | 12 | 12 | 12 |
| Packing Size (mm) | 1000*770*90 | 730*560*90 | 570*460*90 | 430*340*90 | 330*268*90 |
| Gross Weight (kg) | 11 | 5.3 | 3.1 | 2 | 1 |
| Cubic Weight (kg) | 14 | 7.5 | 5 | 2.5 | 2 |
| Lighting Proposal | Double Long Edge | Double Long Edge | Double Short Edge | Single Long Edge | Single long Edge |
| Power Source | Input AC ~110-240V, Output 12V Power Adaptor |
Installation:
The LED light pockets can be installed in columns of 1,2,3 or 4 panels, depending on the space available and the desired look.
Each column consist of 2 floor-to-ceiling cables. The cables can be fixed to the floor and ceiling and the power supply is connected to the cables at the floor or ceiling.
The 12V cables carry the power to the LED panels, so no extra cables are needed, and it is also safe to touch.

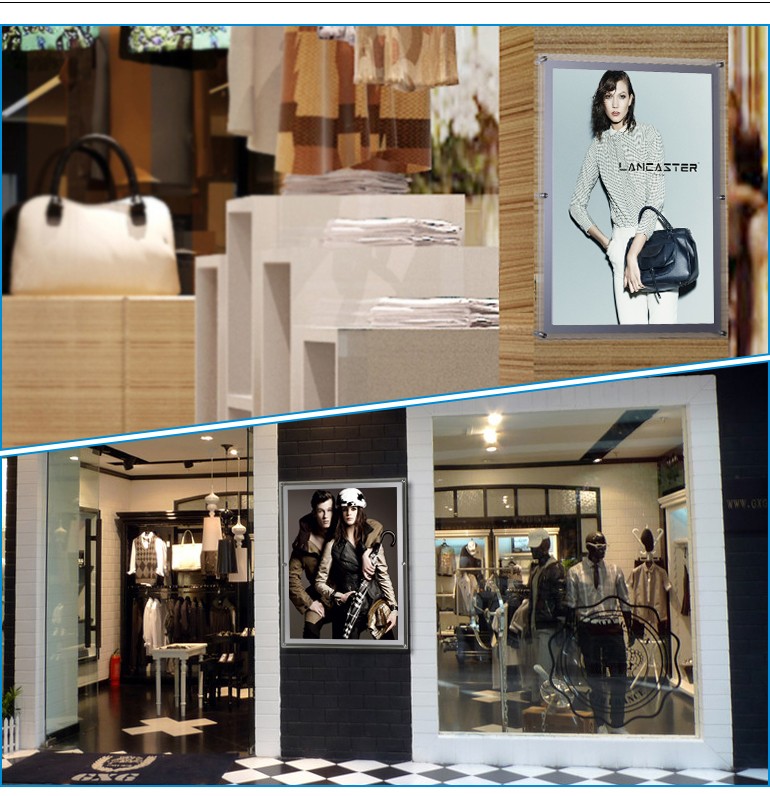

Application: Airport, toilet, dressing room, metro-station, chain store, shopping mall, supermarket, hotel, restaurant, bank, exhibition hall, etc.
